POLYPROPYLENE INSULATED DOUBLE WALL TANKS
- These DOUBLE WALL POLYPROPYLENE tanks are coated with closed cell polyurethane spray-foam insulation.
- The insulation is protected with a white mastic sealant to guard against uV ray degradation.
- The insulation is rated at 6.7 R per inch. Fiberglass Batts in your home walls are between 2.2 and 4.3 R per inch.
- The standard thickness is 2″. We can optionally offer 3″ or 4″ thick insulation.
- Double Wall tanks are and ideal way to add safety to a workplace handing dangerous chemicals.
13 insulated Polypropylene double wall vertical tanks from 100 to 5,000 gallons, priced from $2,686 to $71,320, including insulation of the sides and top. Available in 1.9 SG rating and white.
| Insulated 5,000 Gallon Polypropylene Double Wall Vertical Tank | 5,000 | 175" Height x 102" Diameter 14 ft 7 in H × 8 ft 6 in dia. | 1.9 | White | $71,319.76 |
| Insulated 3,000 Gallon Polypropylene Double Wall Vertical Tank | 3,000 | 117" Height x 102" Diameter 9 ft 9 in H × 8 ft 6 in dia. | 1.9 | White | $31,490.31 |
| Insulated 2,500-Gallon Polypropylene Double Wall Vertical Tank 1.9 SG | 2,500 | 117" Height x 95" Diameter 9 ft 9 in H × 7 ft 11 in dia. | 1.9 | White | $23,131.64 |
| Insulated 2,000 Gallon Polypropylene Double Wall Vertical Tank 1.9 SG 84 in. | 2,000 | 121" Height x 84" Diameter 10 ft 1 in H × 7 ft dia. | 1.9 | White | $17,685.57 |

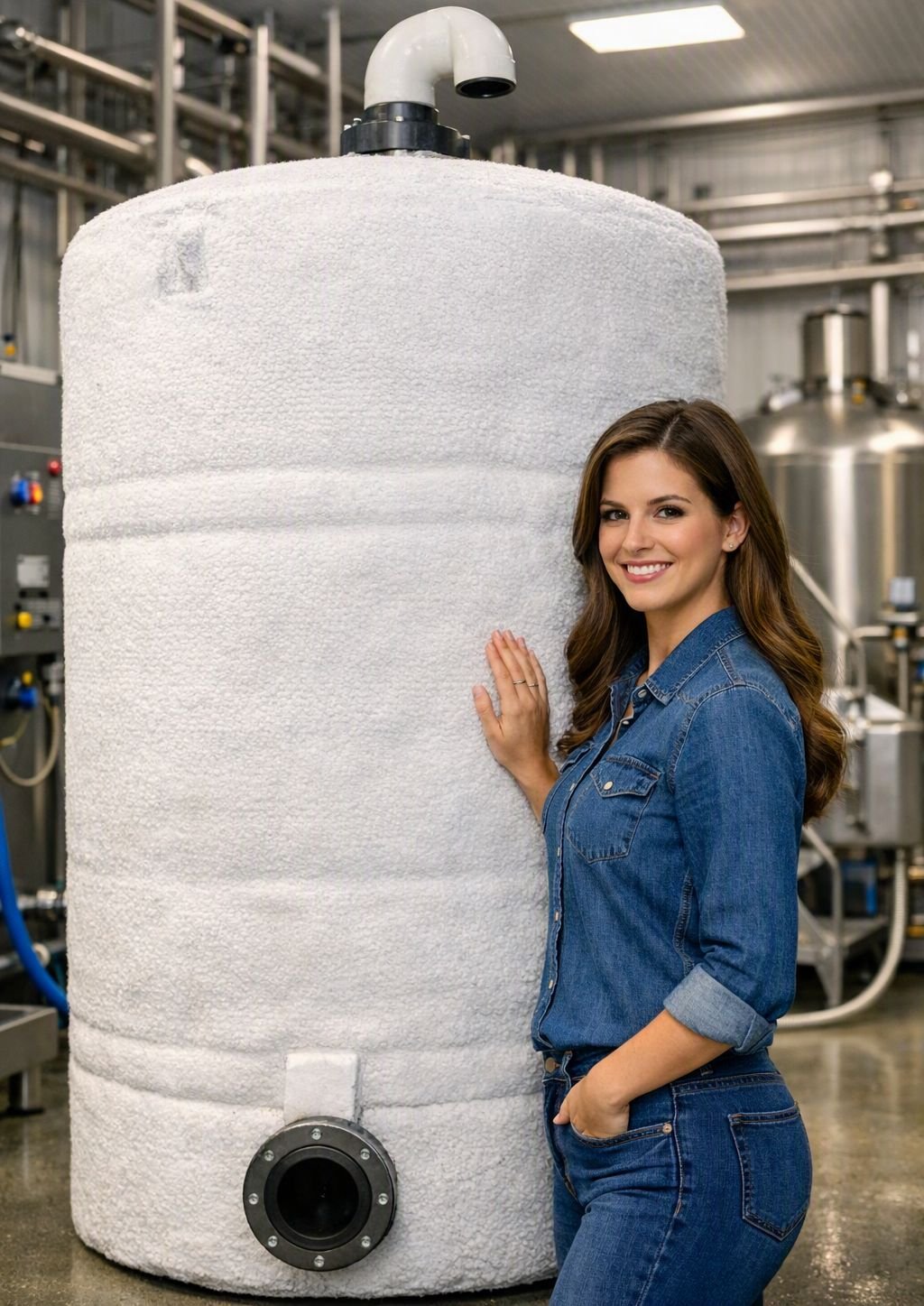

| Insulated 1,550 Gallon Polypropylene Double Wall Vertical Tank | 1,550 | 125" Height x 74" Diameter 10 ft 5 in H × 6 ft 2 in dia. | 1.9 | White | $13,181.00 |
| Insulated 1,000 Gallon Polypropylene Double Wall Vertical Tank | 1,000 | 89" Height x 64" Diameter 7 ft 5 in H × 5 ft 4 in dia. | 1.9 | White | $10,075.94 |
| Insulated 700 Gallon Polypropylene Double Wall Vertical Tank | 700 | 98" Height x 60" Diameter 8 ft 2 in H × 5 ft dia. | 1.9 | White | $8,494.49 |
| Insulated 650 Gallon Polypropylene Double Wall Vertical Tank | 650 | 98" Height x 48" Diameter 8 ft 2 in H × 4 ft dia. | 1.9 | White | $6,630.88 |
| Insulated 550 Gallon Polypropylene Double Wall Vertical Tank | 550 | 86" Height x 48" Diameter 7 ft 2 in H × 4 ft dia. | 1.9 | White | $5,452.86 |
| Insulated 300 Gallon Polypropylene Double Wall Vertical Tank - 48 | 300 | 79" Height x 48" Diameter 6 ft 7 in H × 4 ft dia. | 1.9 | White | $5,049.01 |
| Insulated 265 Gallon Polypropylene Double Wall Vertical Tank | 265 | 91" Height x 35" Diameter 7 ft 7 in H × 2 ft 11 in dia. | 1.9 | White | $4,378.04 |
| Insulated 200 Gallon Polypropylene Double Wall Vertical Tank | 200 | 69" Height x 35" Diameter 5 ft 9 in H × 2 ft 11 in dia. | 1.9 | White | $3,840.05 |
| Insulated 100 Gallon Polypropylene Double Wall Vertical Tank 1.9 SG | 100 | 64" Height x 31" Diameter 5 ft 4 in H × 2 ft 7 in dia. | 1.9 | White | $2,686.45 |
The SG (specific gravity) rating is the heaviest liquid a tank is built to hold. Water is 1.0, so a 1.9 SG tank is made for liquids up to 1.9 times as heavy as water. Choose an SG rating at or above the specific gravity of your liquid.
